Product Application this equipment is to perforate and cut the raw paper into various sizes according to the requested.
The finished product is neat, in good order and with equality tension.
It has the feature of compact structure, easy and stable operation, less electricity consumption and covers a small area of 8.4 m². The highest production speed is 200-230m/min.
This equipment is adjustable to meet the requested finished product. This model is the ideal equipment for paper making factory and paper processing factory. This equipment can process raw paper of 1.75m(75B type) in width. There are two types of this model:
A) is ordinary type, it used one embossed unit for 2 ply paper,
B) other is dot-by-dot type, it used embossed units respectally for each one.

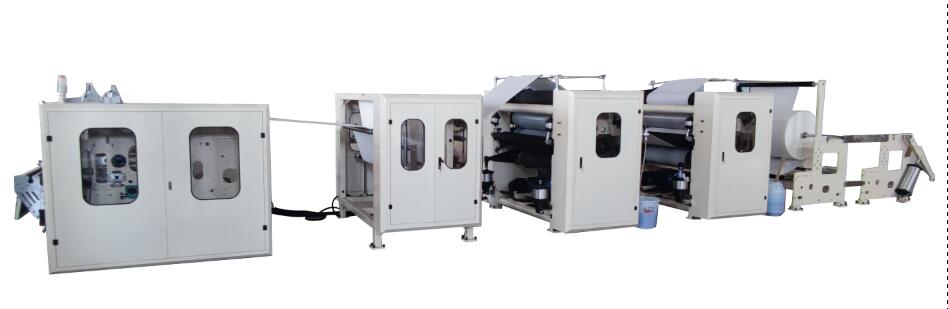

This machine is consist of stand of raw material, paper conveying unit, embossing unit, perforating unit, rolling unit, electricity control and cutting system.
The production process is: Unreeling - Embossing - Perforating- Lamination- Rewinding- Tail-gluing- Edge trimming---Automatic core loading.
Functions and Features --- Wall Type Automatic Rewinding Machine

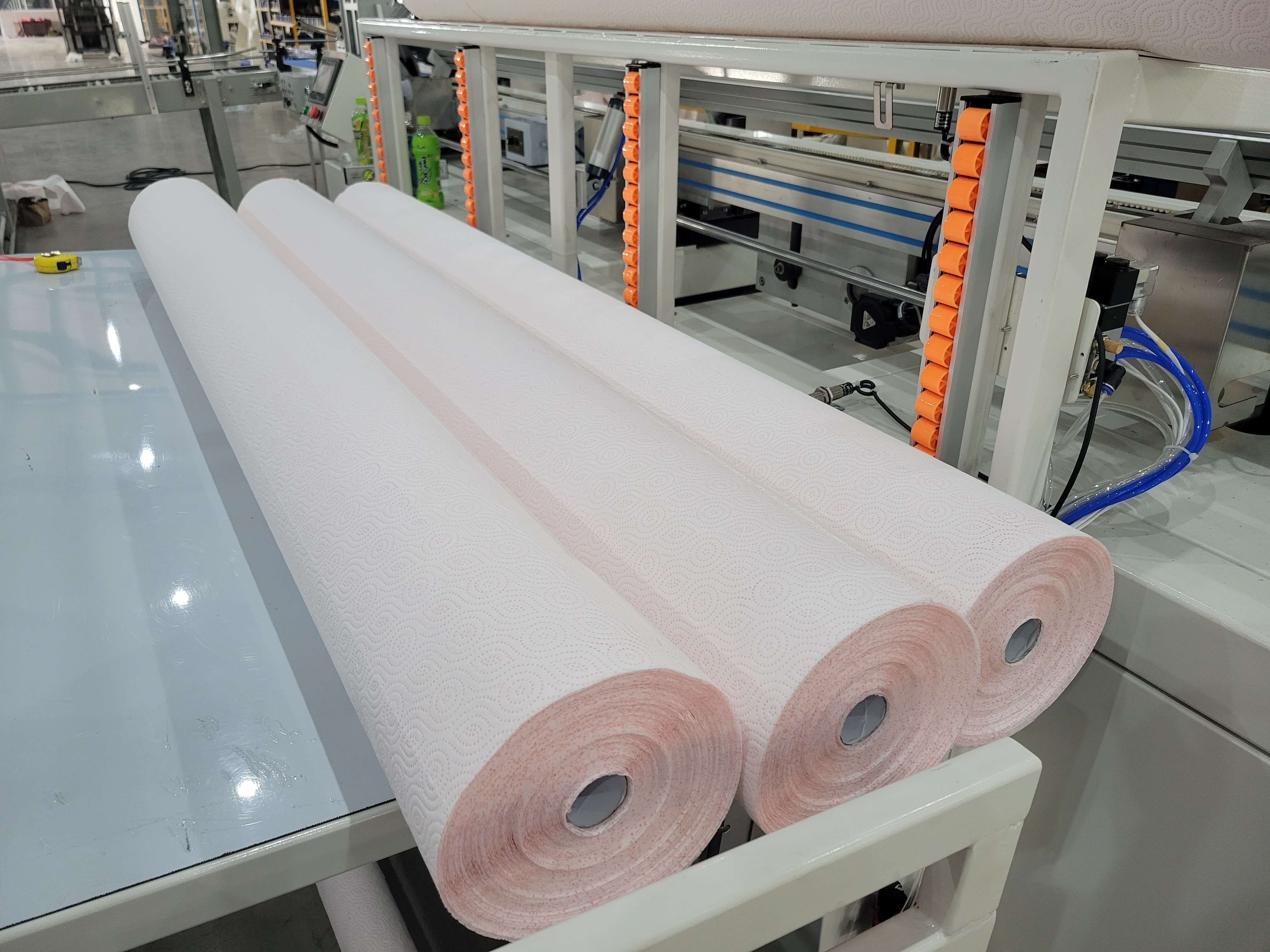

1.This machine is for making toilet paper and kitchen towel, the whole structure is wall-type, which make machine running stable at high speed, and noiseless.
2. Perforation distance is adjustable to meet different distance needs.
3. Automatic core feeding system, automatic pushing the log after rewinding, then rewinding the new log again.
4. Automatic edge-trimming, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.
5. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.
6. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.
7. Two wall type back stands, pneumatic lifting system, with wide driving flat belts; each jumbo roll can be adjusted independently.
8. Adopt jogging switches for wearing the paper, easy and safe to operate.
9.When raw material broken, the machine will stop automatically.
Video Link: https://youtu.be/GK44fR9n5tI
https://youtu.be/GK44fR9n5tI
Product Specifications
| Model | XY-TQ-C Full automatic diameter 80-280 mm color glue lamination kitchen towel rewinding making machine |
| Jumbo Roll Max Width | 2800mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ1200mm(Other size can be specified) |
| Jumbo Roll Inner Diameter | 3inches(76.2mm) (Other size can be specified) |
| Perforation Distance | 4 anvil Blades(115mm)(Other size can be specified) |
| Finished Product Diameter | Φ90~φ280mm |
| Finished Product Core Diameter | φ38~φ76mm |
| Production Speed | 200~230m/min |
| Program Controller | PLC( INVT ) |
| Unwind Stands | 2 Stands(Need to be specified) |
| Pneumatic System | 3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user) |
| Main Power | 14KW 380V 50HZ |
| Dimension | 7000*4000*1900(L*W*H) |
| Weight | About 7T |
| Edge-Line Embossing | Steel to steel (Pneumatic Control) |
| Full Embossment | Steel to rubber. |
Our service
Why buy Machine from Fujian Xinyun Machinery Development Co.,Ltd ?
1. Good quality of machine with reasonable price.
2. Good service: Any question from customer will be reply within 24 hours
For all the machines we sell, we will offer two-years guarantee for free and all life maintenance.
We deliver a DVD of Operation Video with machine,it will help customer to work the machine easy.
After the machines arrive, the sellers shall send technician to install the production line(if need).
And the buyer shall pay their round-trip air tickets from China factory to buyer's factory, the charge of visa, food ,transportations and accommodation in buyer's city.
Company's information
Fujian Xinyun Machinery Development Co.,Ltd is good at Paper Converting Machinery Manufacture.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2)Kitchen Towel Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4 )Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to contact us to get more details !
We can design the machine according to your request.
